TS-341

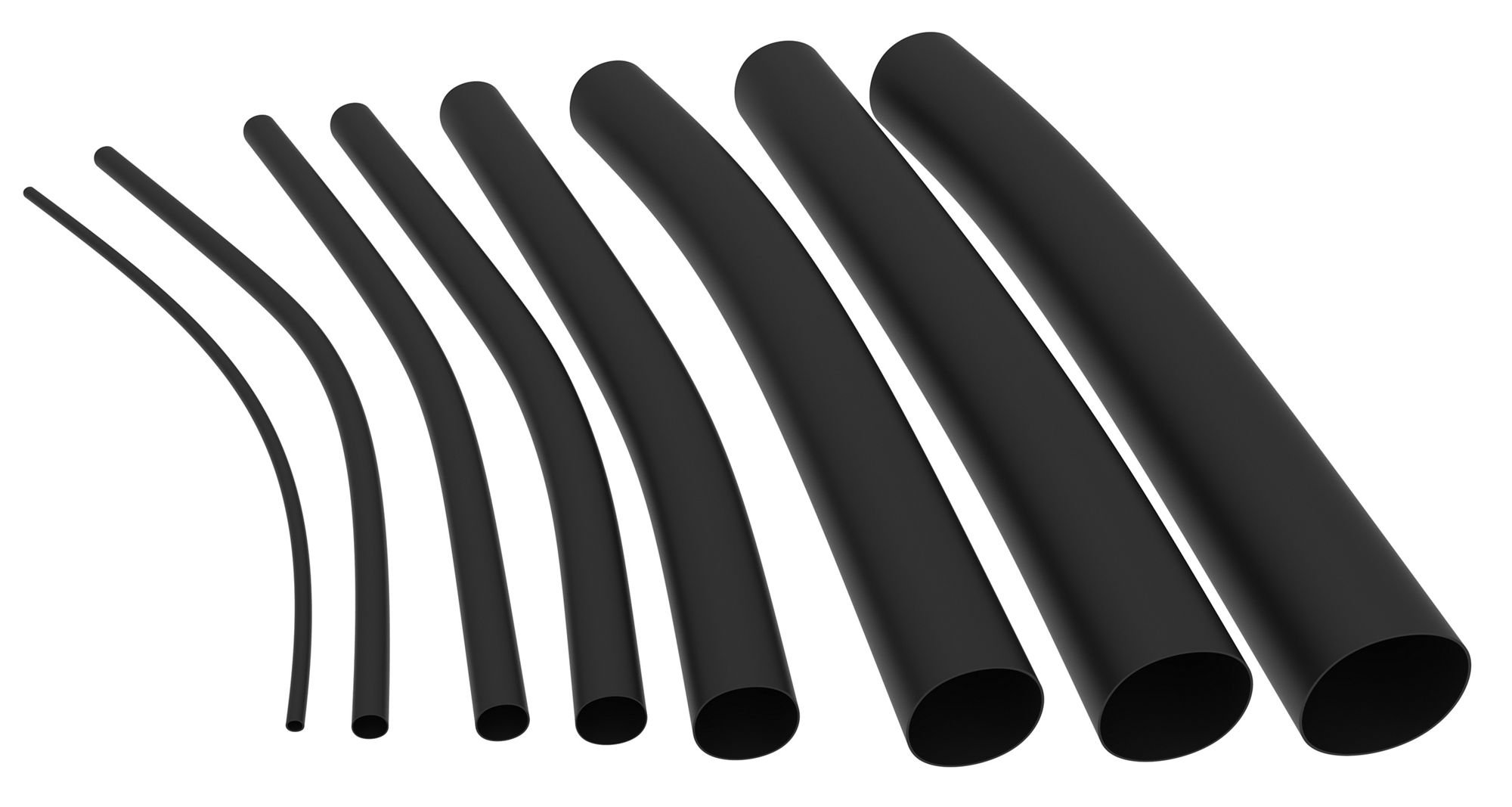

Unreinforced extrusion grade of polyamide 9T (PA9T). Thanks to our proprietary compounding technology, it offers excellent heat resistance and chemical barrier properties, while also achieving both conductivity and high toughness, making it suitable for tubes for automotive and other industrial applications.
Unreinforced
Extrusion
Electrical Conductivity
Application examples
Property table
| Unit | Test method | Value | |
|---|---|---|---|
| Grade name | TS-341 | ||
| Glass fiber content | ％ | ― | 0 |
/
Physical properties
| Specific gravity | - | ISO 1183 | 1.08 |
/
Mechanical properties
| Tensile strength | MPa | ISO 527 | 55 |
| Flexural strength | MPa | ISO 178 | 75 |
| Flexural modulus | GPa | ISO 178 | 1.7 |
| Charpy notched impact strength | ISO 179/1eA | 75 |
/
Thermal properties
| Melting point | ℃ | ISO 11357-3 | 264 |
/
* The above data are property values measured in the absolutely dry state.
* The above data are actual measured values obtained by our company and are not guaranteed values.
